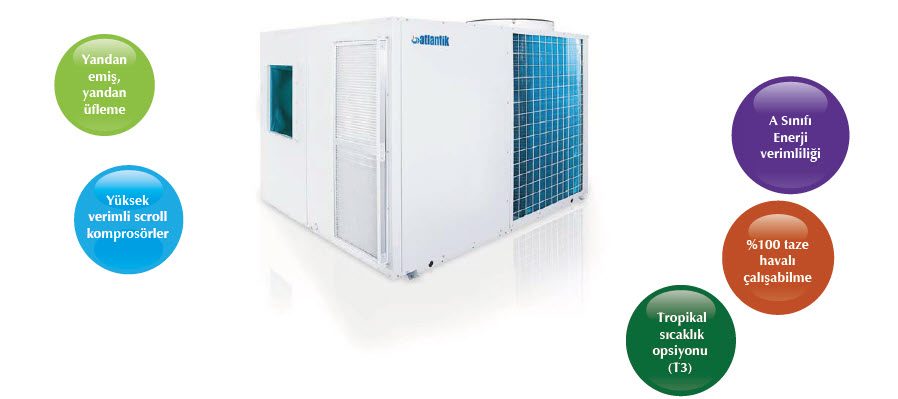

Rooftop Packaded Units
.jpg)

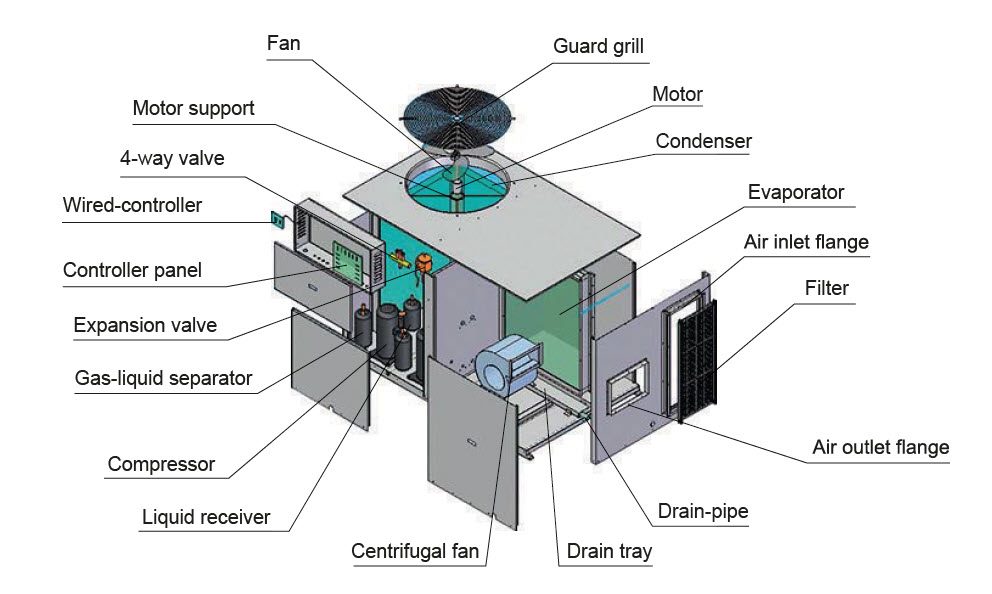

- Weather proofed mono-bloc casing with 25 mm thick
panels insulated with 63 kg/m³ glass wool and painted
to prevent corrosion - 2 independant circuit & frigorific insulated box
- High EER and environmentally friendly refrigerant
R410A with zero ODP (Ozone Depleting Potential) - High efficiency scroll compressors with crankcase
heater - Condenser coils with hydrophilic coated (blue) fins to
improve removal of water droplets during defrost cycles - Removable drain pan under indoor coil with positive
- Only cooling, heat pump and electrical heater
- Multiple choice of return air and supply air arrangements: down, side, front and up
- Modbus card
- IATC microprocessor-based controller capable of communicating with a BMS via an optional ModBus protocol RS-485 card
- Ekonomizer
- Remote control
.jpg)
| Model | Flow | Cooling Capacity | Total Power Drawn | EER | Weight | Width | Lenght | Height |
| m³/h | W | W | kg | mm | mm | mm | ||
| RTU12 | 2100 | 12000 | 4100 | 2,92 | 240 | 1100 | 1410 | 1095 |
| RTU15 | 2600 | 15200 | 5300 | 2,87 | 260 | 1100 | 1410 | 1095 |
| RTU18 | 3400 | 17500 | 5500 | 3,18 | 290 | 1100 | 1410 | 1095 |
| RTU24 | 4100 | 24000 | 8800 | 2,73 | 420 | 1175 | 1978 | 1095 |
| RTU30 | 5200 | 30300 | 11300 | 2,68 | 480 | 1175 | 1978 | 1095 |
| RTU35 | 6300 | 35600 | 12300 | 2,89 | 500 | 1175 | 1978 | 1095 |
| RTU45 | 7600 | 44500 | 17000 | 2,62 | 750 | 1440 | 2268 | 1167 |
| RTU50 | 8500 | 50000 | 19500 | 2,56 | 770 | 1440 | 2268 | 1167 |
| RTU60 | 10900 | 60000 | 22800 | 2,63 | 830 | 1650 | 2298 | 1400 |
| RTU72 | 12500 | 70000 | 26700 | 2,62 | 860 | 1650 | 2298 | 1400 |
| RTU90 | 16000 | 90000 | 32900 | 2,74 | 1160 | 2140 | 2878 | 1964 |
| RTU105 | 19500 | 105000 | 39700 | 2,65 | 1350 | 2270 | 2878 | 1964 |
| RTU120 | 21000 | 120000 | 45100 | 2,66 | 1710 | 2200 | 3626 | 2047 |
| RTU140 | 25000 | 140000 | 55700 | 2,52 | 1820 | 2200 | 3626 | 2047 |
| RTU150 | 26000 | 149000 | 58400 | 2,55 | 1850 | 2200 | 3626 | 2047 |
| RTU170 | 31400 | 168600 | 65800 | 2,56 | 2280 | 2240 | 5800 | 2240 |
| RTU180 | 32000 | 180000 | 69900 | 2,58 | 2380 | 2240 | 5800 | 2240 |
| RTU190 | 34900 | 188500 | 78300 | 2,40 | 2500 | 2240 | 5800 | 2240 |
| RTU210 | 38000 | 210000 | 83000 | 2,53 | 2430 | 2200 | 4690 | 2055 |
| RTU220 | 42000 | 225000 | 84500 | 2,67 | 2530 | 2200 | 4820 | 2055 |
| RTU240 | 48000 | 241600 | 86000 | 2,81 | 2660 | 2200 | 4820 | 2055 |
| RTU270 | 54000 | 269800 | 96300 | 2,80 | 2760 | 2200 | 5660 | 2055 |
| RTU300 | 54000 | 298000 | 106700 | 2,80 | 2860 | 2200 | 5660 | 2055 |
Note: Capacities, return air 27 °C KT / 19,5 °C YT, outsite air 35 °C KT / 24°C YT
