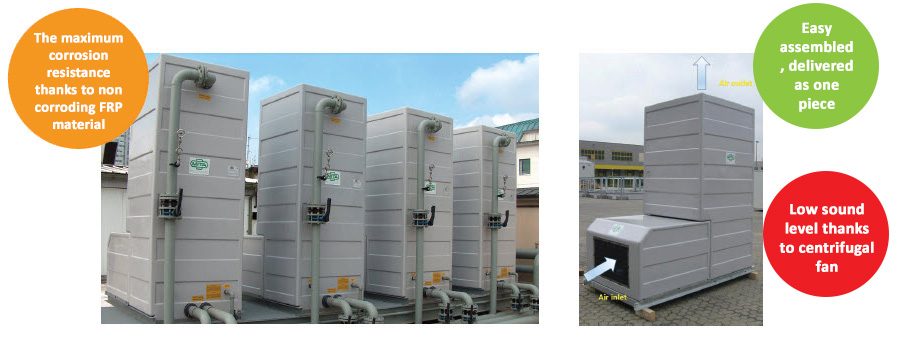

Open Type Cooling Tower With Radial Fans
- Basin and body are made of non-corroding FRP
- Centrifugal fan with belt transmission
- Thanks to high efficiency drift eliminator certifield by EUROVENT, low drift lose
- Fan protection grid in stainless steel AISI 304
- IP 56 Fan motor
- Delivered as one piece (assembled)

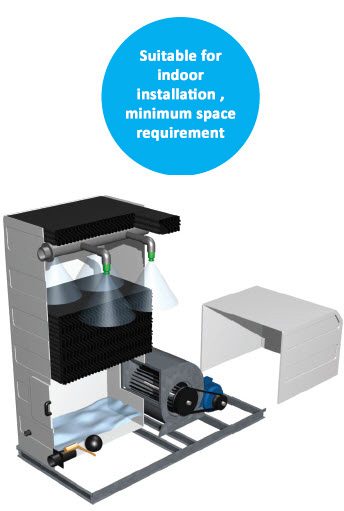

- The non-clogging nozzles are made of isotactic polypropylene with full cone (1200 angle) spraying
| Models | Cooling Capacity |
HWater Tank |
Operation Weight |
Width | Length | Height |
| kW | m3 | kg | mm | mm | mm | |
| MCT 25 | 35 | 0,08 | 178 | 950 | 450 | 1720 |
| MCT 45 | 62 | 0,18 | 275 | 1200 | 600 | 1850 |
| MCT 345 | 74 | 0,17 | 365 | 1810 | 915 | 2390 |
| MCT 350 | 86 | 0,17 | 367 | 1810 | 915 | 2390 |
| MCT 360 | 98 | 0,17 | 372 | 1810 | 915 | 2390 |
| MCT 365 | 110 | 0,17 | 374 | 1810 | 915 | 2390 |
| MCT 375 | 128 | 0,17 | 379 | 1810 | 915 | 2390 |
| MCT 380 | 148 | 0,17 | 382 | 1810 | 915 | 2390 |
| MCT460 | 164 | 0,36 | 606 | 2240 | 1200 | 2390 |
| MCT 465 | 191 | 0,36 | 611 | 2240 | 1200 | 2390 |
| MCT 470 | 212 | 0,36 | 615 | 2240 | 1200 | 2390 |
| MCT 475 | 236 | 0,36 | 615 | 2240 | 1200 | 2390 |
| MCT 480 | 264 | 0,36 | 624 | 2240 | 1200 | 2390 |
| MCT 860 | 329 | 0,72 | 630 | 2240 | 2500 | 2500 |
| MCT 865 | 382 | 0,72 | 1226 | 2350 | 2500 | 2500 |
| MCT 870 | 424 | 0,72 | 1222 | 2350 | 2500 | 2500 |
| MCT 880 | 528 | 0,72 | 1240 | 2350 | 2500 | 2500 |
| MCT1260 | 494 | 1,08 | 1970 | 2350 | 3700 | 2500 |
| MCT1265 | 577 | 1,08 | 1975 | 2350 | 3700 | 2500 |
| MCT1270 | 636 | 1,08 | 1985 | 2350 | 3700 | 2500 |
| MCT 1280 | 792 | 1,08 | 2030 | 2350 | 3700 | 2500 |
Note: Considered working conditions: T.in 35 °C, T.out 30°C and wb: 24 °C
